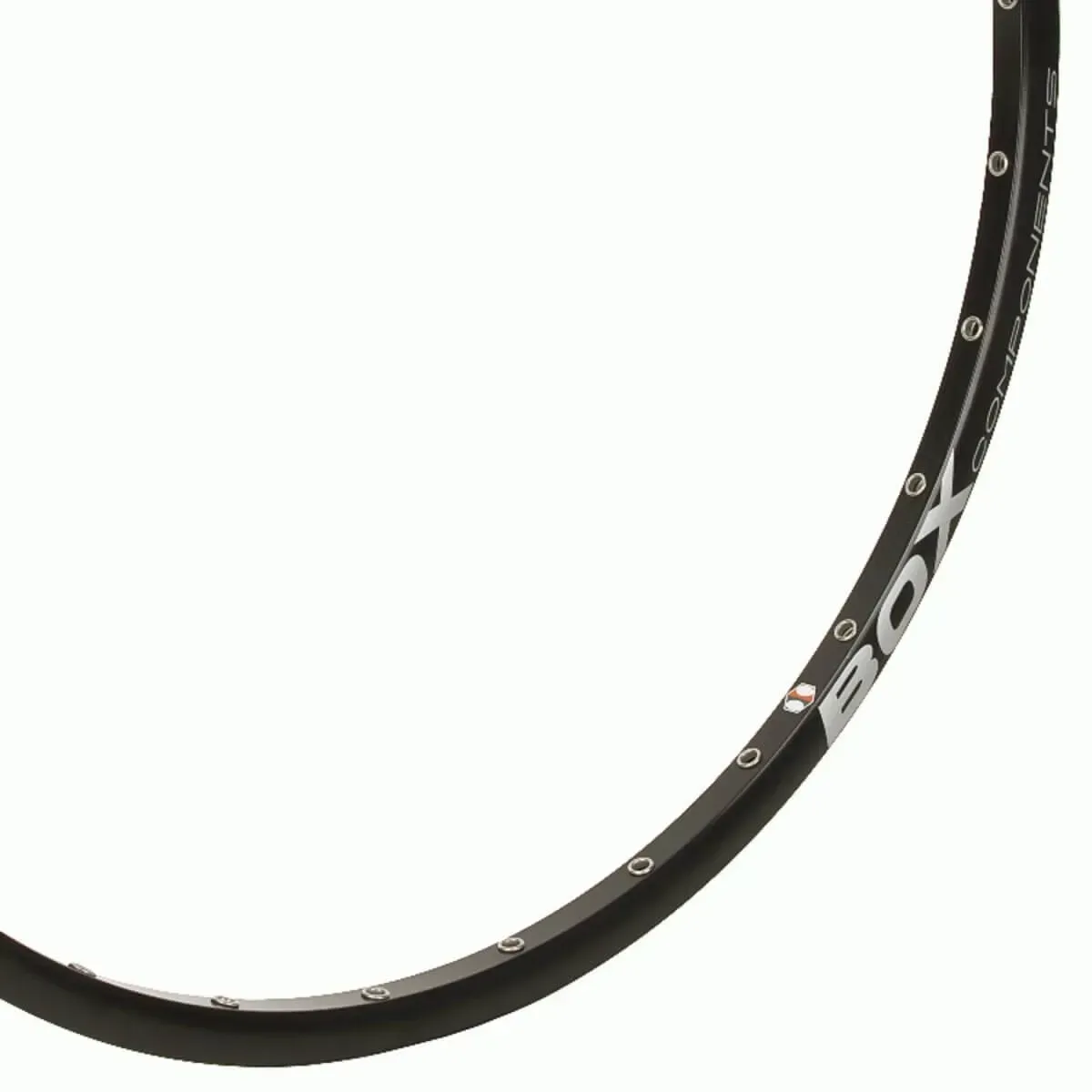

Box One Alloy BMX 28 Hole Rim Front Black 20" x 1 1/8" - 1 3/8"
20" x 1 1/8" - 1 3/8"
my account
The Box One Rims feature a double-walled, eyeleted, low profile design optimized to be both lightweight and durable! We offer these in both brake and brake-less variants. You’ll have a clean and sleek wheel build with rim brake tracks as needed.
Low Profile Design
Optimized Internal Geometry
Machined Brake Track
Material: 6061-T6 Aluminum
Process: Extruded and Rolled
Hole Drilling: 28
Seam: Pinned
Valve Hole: Presta
Hardware: Stainless Steel Eyelets
Finish: Matte Black Anodized with Decals
Compatibility:
• Tubeless: Not Compatible
• Brake:
• Rear: Brake
• Front: Brake-Less Profiles
• Tire Size: 20 x 1" to 1-3/8"
Size:
• Diameter: 20”
• External Width:
• Front: 17.5mm
• Rear: 18mm
• Internal Width: 22.5mm
• ERD: 442mm/438mm
• ISO (E.T.R.T.O): 451
Weight:
• Front: 244g/8.6oz
BXRM14F4518BK
639266090113
Data sheet
- Material
- Alloy
- Size
- 20" x 1 1/8" - 1 3/8"
- Part
- Rim
- Position
- Front
- Type
- 28-Hole
- Brand
- BOX
- Consumentenprijs
- 57.02
Specific References
- EAN13
- 639266090113
