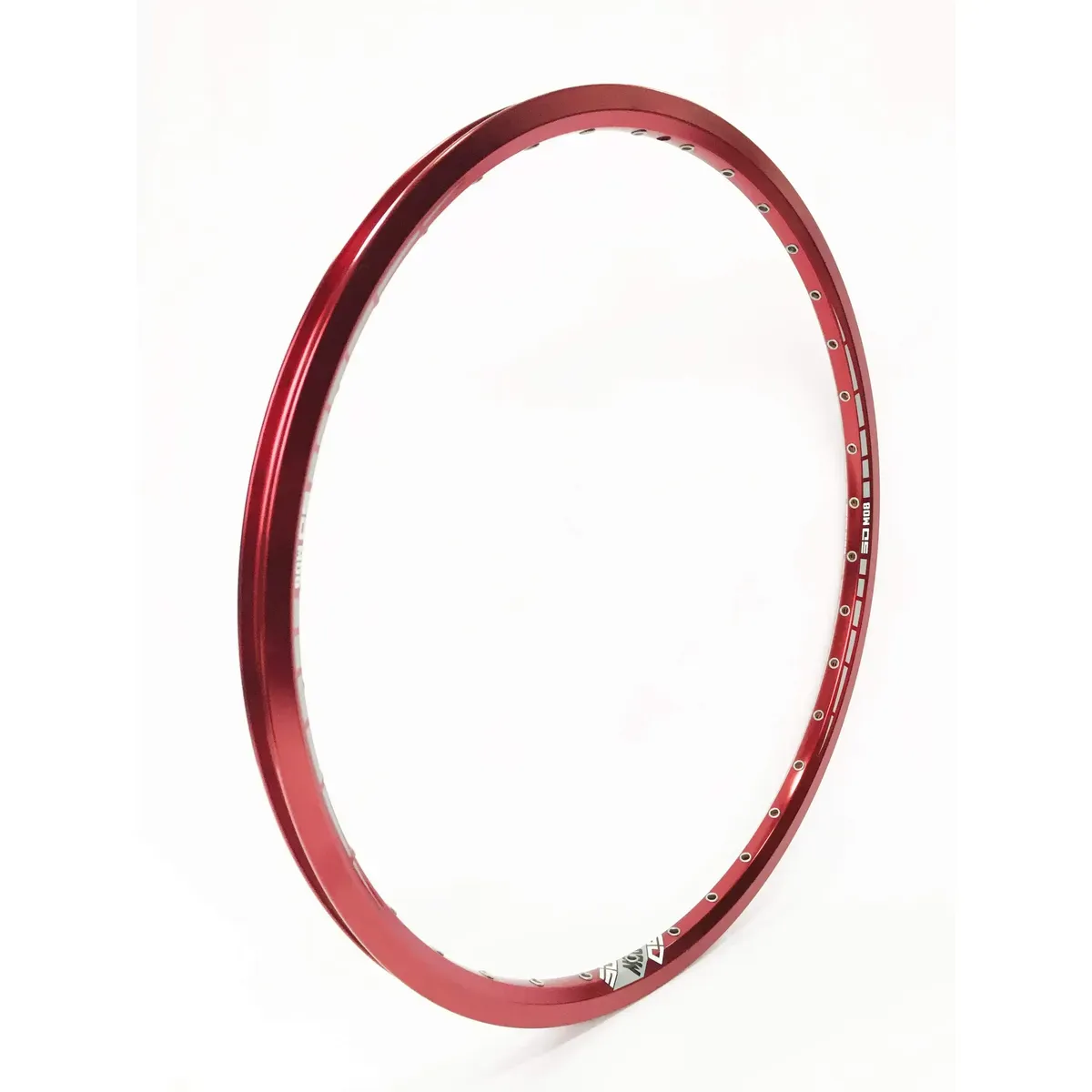

SD Rim M08 Rear 36 Hole Red

20” x 1 1/8”

A= Internal Diameter (when eyelets, then eyelets to eyelets): 429mm

B= Rim Thickness (when eyelet, includes eyelet): 3mm

C= ERD: 489mm

20” x 1 1/8” - 1 3/8"

A= Internal Diameter (when eyelets, then eyelets to eyelets): 424.2mm

B= Rim Thickness (when eyelet, includes eyelet): 3mm

C= ERD: 484.2mm

20” x 1.75"

A= Internal Diameter (when eyelets, then eyelets to eyelets): 387.6mm

B= Rim Thickness (when eyelet, includes eyelet): 3mm

C= ERD: 447.6mm

20” x 1.75" OS

A= Internal Diameter (when eyelets, then eyelets to eyelets): 429.6mm

B= Rim Thickness (when eyelet, includes eyelet): 3mm

C= ERD: 489.6mm

24” x 1.75"

A= Internal Diameter (When eyelets, then eyelets to eyelets): 487.6mm

B= Rim Thickness (when eyelet, includes eyelet): 3mm

C= ERD: 547.6mm

Spoke Calculator click here
