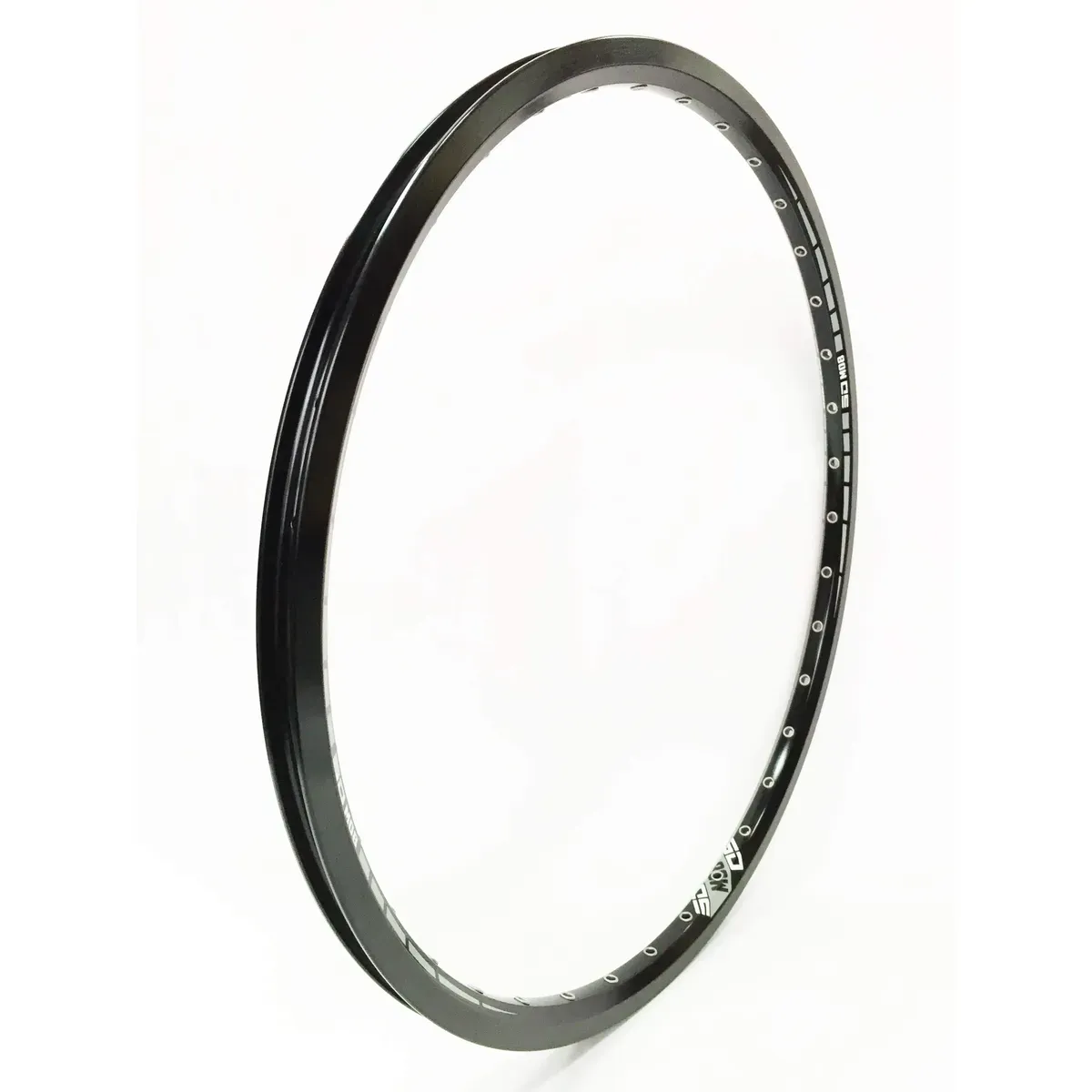

SD Rim M08 Front 36 Hole Black

20” x 1 1/8”

A= Internal Diameter (when eyelets, then eyelets to eyelets): 426mm

B= Rim Thickness (when eyelet, includes eyelet): 3mm

C= ERD: 429mm

20” x 1 1/8” - 1 3/8"

A= Internal Diameter (when eyelets, then eyelets to eyelets): 421mm

B= Rim Thickness (when eyelet, includes eyelet): 3mm

C= ERD: 427mm

20” x 1.75"

A= Internal Diameter (when eyelets, then eyelets to eyelets): 384,4mm

B= Rim Thickness (when eyelet, includes eyelet): 3mm

C= ERD: 387,6mm

20” x 1.75" OS

A= Internal Diameter (when eyelets, then eyelets to eyelets): 428,4mm

B= Rim Thickness (when eyelet, includes eyelet): 3mm

C= ERD: 429,6mm

24” x 1.75"

A= Internal Diameter (When eyelets, then eyelets to eyelets): 468,4mm

B= Rim Thickness (when eyelet, includes eyelet): 3mm

C= ERD: 487,6mm

Spoke Calculator click here
