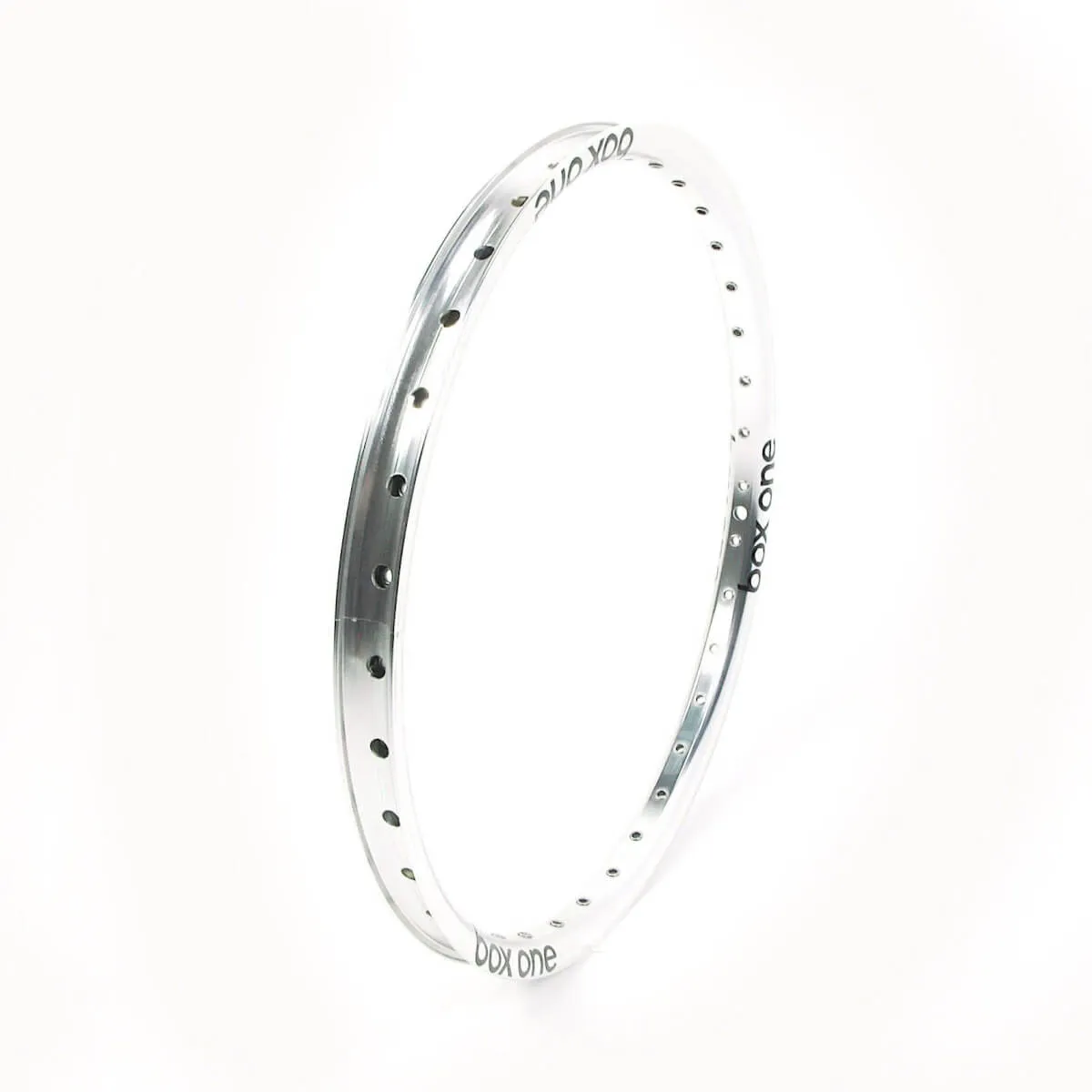

Box One Alloy BMX 36 Hole Rim Front Silver

The Box One Rims feature a double-walled, eyeleted, low profile designed optimized to be lightweight and durable! Offered in both brake and brake-less variants, allow for clean and sleek wheel builds that only have rim brake tracks where they need to be.

Low Profile Design
Optimized Internal Geometry

Material: 6061-T6 Aluminum
Process: Extruded and Rolled
Hole Drilling: 36
Seam: Pinned
Valve Hole: Schrader
Hardware: Stainless Steel Eyelets
Finish: Matte Black Anodized with Decals
Compatibility:
• Tubeless: Not Compatible
• Brake:
• Rear: Brake
• Front: Brake-Less Profiles
• Tire Size: 20 x 1.50 to 1.95"
Size:
• Diameter: 20”
• External Width: 28mm
• Internal Width: 22.5mm
• ERD:
• Front: 391mm
• Rear: 394mm
• ISO (E.T.R.T.O): 451mm (front and rear)
Weight:
• Front: 295g/10.4oz
• Rear: 362g/12.7oz

• Tire Size: 24 x 1.50 to 1.95"
Size:
• Diameter: 24”
• External Width: 28mm
• Internal Width: 22.5mm
• ERD:
• Front: 491mm
• Rear: 494mm
• ISO (E.T.R.T.O): 451
Weight:
• Front: 400g/14.1oz
• Rear: 432g/15.2oz
