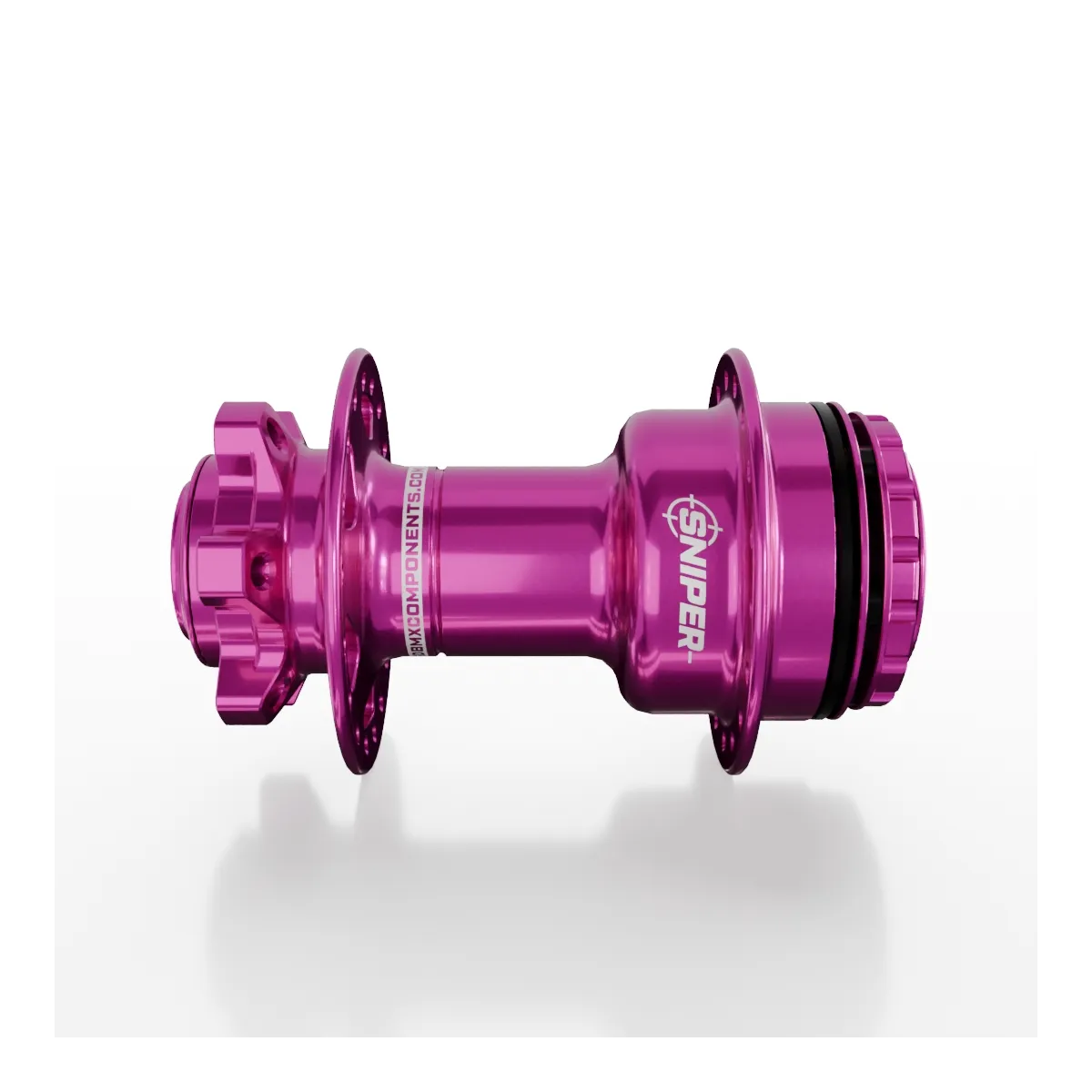

SD-X Sniper Evo Air HSX Rear Hub Pink

Compatible exclusively with Meybo HSX frames (Alloy & Carbon)!

The SD-X Sniper Evo Air HSX Rear Hub is designed specifically for lightweight racers using Meybo HSX frames. This full-engagement rear hub combines lightweight aluminum construction with SKF ABEC-5 bearings, ensuring maximum efficiency and reliability in BMX racing.

The advanced direct engagement system provides immediate power transfer with silent operation and zero resistance while freewheeling.

This hub is supplied exclusively as a 15 mm version and cannot be converted to a 10 mm bolt-on configuration.

Features
- Supplied as 15 mm hub, compatible with Meybo HSX frames
- ISO-6 disc mount
- Available in 28-hole and 36-hole versions
- Suitable for racers up to 55 kg
- High-quality SKF ABEC-5 bearings
- Hub shell and internals made from premium 7075 aluminum
- Alloy driver
- Available in a wide color range
- Hub supplied without EVO cog (must be ordered separately)
- Hub supplied without 15 mm axle

Technical Specifications
- Weight (28-hole): 320 g
- Weight (36-hole): 319 g
- Wheel bearings: 2× 6903
- Clutch bearing: 1× Sniper Air
- Driver outer bearing: 6806
- Driver inner bearing: 6705

A= Total length: 110mm
B= Distance flange to outside non-drive side: 25mm
C= Distance flange to outside drive side: 25mm
D= Flange diameter non-drive side: 56mm
E= Flange diameter drive side: 56mm

Spoke Calculator click here

More info:
- Exploding view
- Assembly and Disassembly video
- Sniper Evo Catalog
