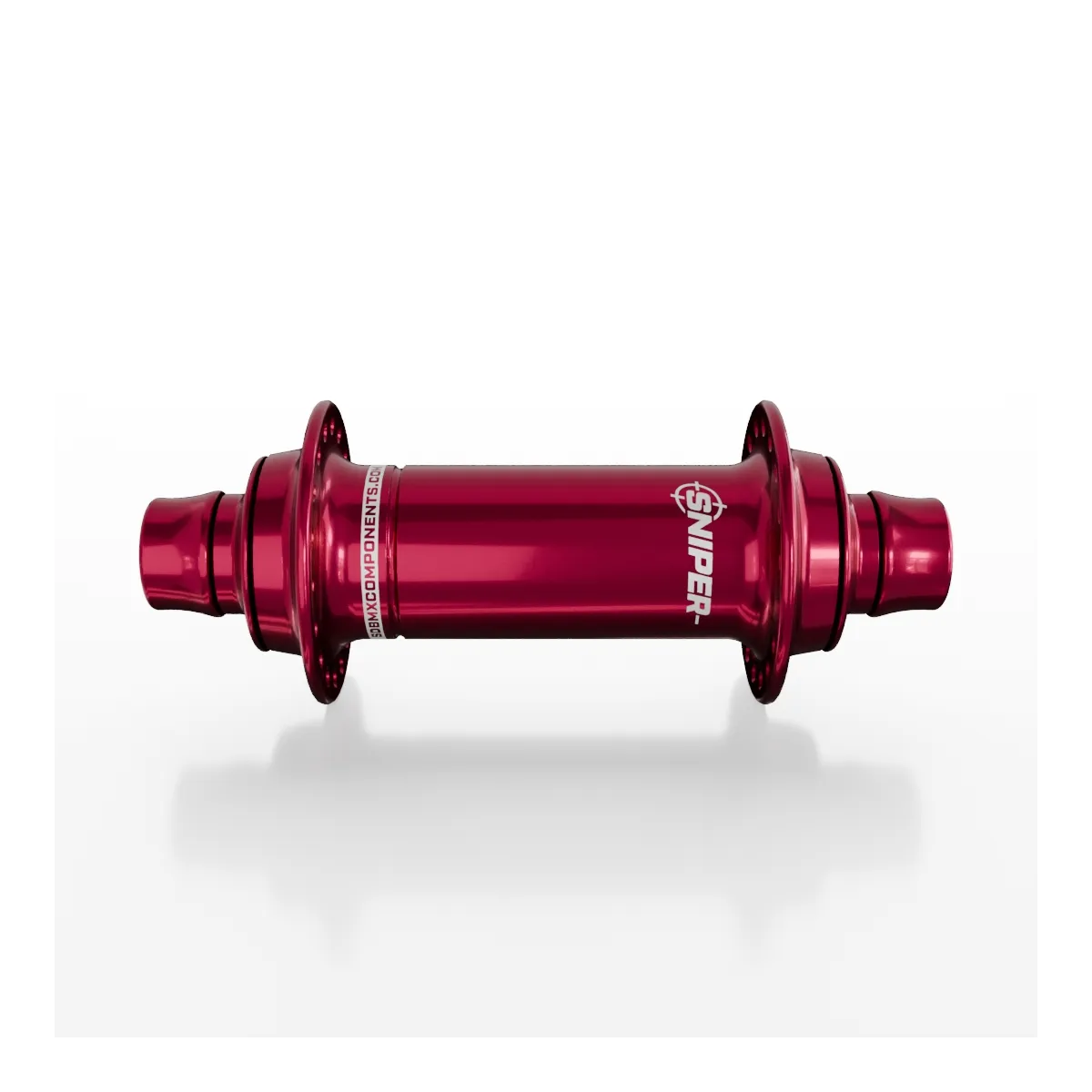

SD-X Sniper Evo Air Front Hub Red

4The SD-X Sniper Evo Air Front Hub is engineered for lightweight racers who demand maximum performance, precision, and reliability. Designed specifically for BMX racing, this hub combines ultra-lightweight aluminum construction with titanium bolts and high-end SKF ABEC-5 bearings, resulting in an exceptionally fast and responsive front hub.

The Sniper Evo Air Front Hub is fully customizable with a wide range of separately available components, allowing riders to personalize their setup using an extensive color palette.

Features
- 10 mm front hub with titanium bolts
- Available in 28-hole and 36-hole versions
- Suitable for racers up to 65 kg
- High-quality SKF ABEC-5 bearings
- Hub shell and internal components manufactured from premium 7075 aluminum
- Available in a wide range of colors

Technical Specifications
- Weight (28-hole): 140 g
- Weight (36-hole): 139 g
- Wheel bearings: 2× 6902
- Titanium bolts: 2× UNC 3/8-16

A= Total length: 100mm
B= Distance flange to outside non-drive side: 14mm
C= Distance flange to outside drive side: 14mm
D= Flange diameter non-drive side: 40mm
E= Flange diameter drive side: 40mm

Spoke Calculator click here

More info:
- Exploding view
- Assembly and Disassembly video
- Sniper Evo Catalog
